Product Description

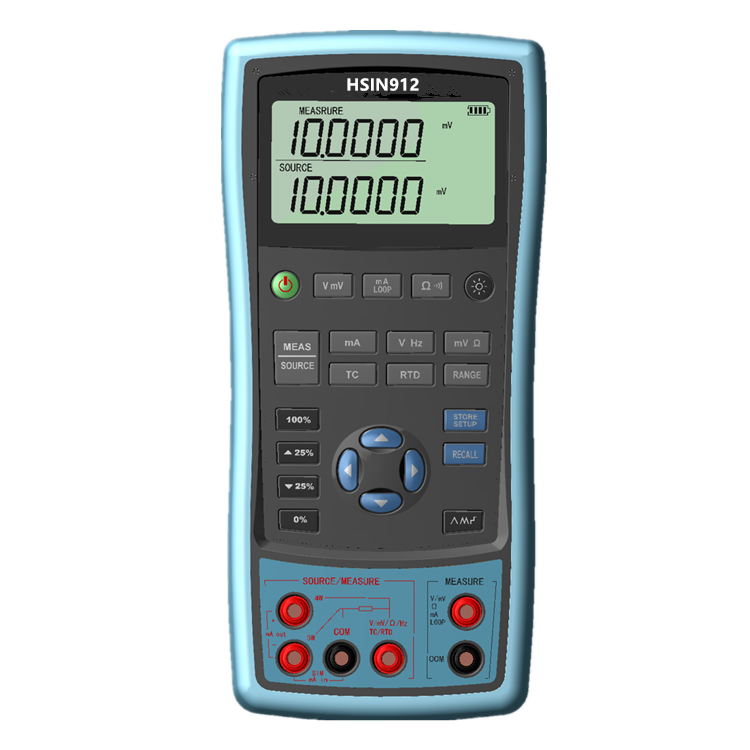

Overview: The HSIN912 resistance thermal resistance (RTD) process calibrator is a handheld tool used to calibrate RTD (resistance temperature body) transmitters. It can simulate and measure many different types of RTDs and it can also simulate and test resistance.
Overview: The HSIN912 resistance thermal resistance (RTD) process calibrator is a handheld tool used to calibrate RTD (resistance temperature body) transmitters. It can simulate and measure many different types of RTDs and it can also simulate and test resistance.
Features
1. Super Protection Function: Waterproof grade IP67, automatic protection of any signal terminal misconnected to 220V
2. Measure the temperature of thermocouple and RTD output
3. Analog thermocouple, RTD output
4. It can provide manual stepping, automatic stepping, 0~100% step and slope output function
5. With white LED backlight, with manual backlight adjustment and automatic power off function, suitable for on-site use
6. Unique automatic identification of three-wire and four-wire wiring methods
7. Accuracy: 0.05%
8. Battery cover for easy battery replacement
9. The thermocouple measurement and output provide automatic and manual cold junction temperature compensation
10. New types of thermocouples and thermal resistances can be added according to customer needs
11. Using Temperature: -10℃~55℃
12. Storage Temperature: -20℃~60℃
13. Relative Humidity: 0-90%RH, non-condensing
14. Weight: 350 grams
15. Dimensions: 185mm×93mm×47mm
16. Power Supply Mode: 6 7# batteries or AC adapter
17. Communication Method: RS232
1. Super Protection Function: Waterproof grade IP67, automatic protection of any signal terminal misconnected to 220V
2. Measure the temperature of thermocouple and RTD output
3. Analog thermocouple, RTD output
4. It can provide manual stepping, automatic stepping, 0~100% step and slope output function
5. With white LED backlight, with manual backlight adjustment and automatic power off function, suitable for on-site use
6. Unique automatic identification of three-wire and four-wire wiring methods
7. Accuracy: 0.05%
8. Battery cover for easy battery replacement
9. The thermocouple measurement and output provide automatic and manual cold junction temperature compensation
10. New types of thermocouples and thermal resistances can be added according to customer needs
11. Using Temperature: -10℃~55℃
12. Storage Temperature: -20℃~60℃
13. Relative Humidity: 0-90%RH, non-condensing
14. Weight: 350 grams
15. Dimensions: 185mm×93mm×47mm
16. Power Supply Mode: 6 7# batteries or AC adapter
17. Communication Method: RS232
