Trading Information
Minimum Order Quantity: MOQ=1 Unit
Price: N/M
Payment Term: TT, Paypal, Western union
Supply Ability: 200 unit per week
Delivery Deadline: 5~7 days
Conventional Packing: Carton
Product Description

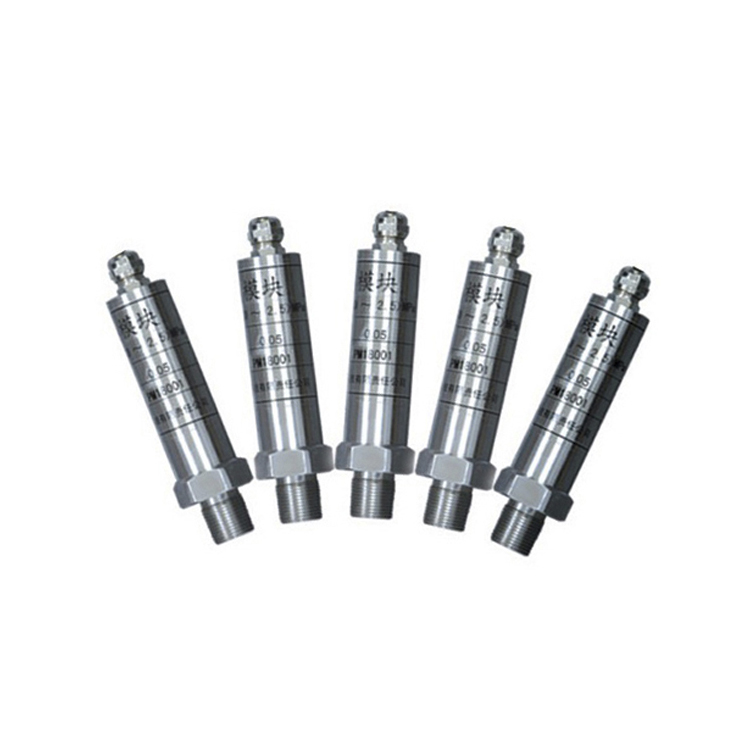

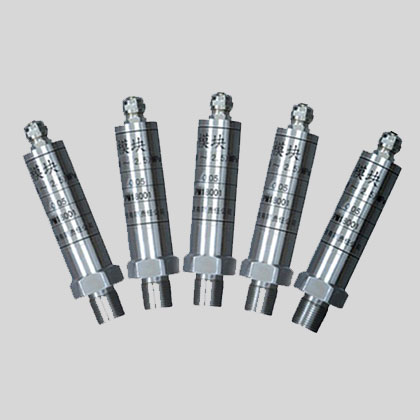

Overview: HSIN685 intelligent Digital pressure module with small size and portable. It can be used for pressure measurement with HSIN series process calibrators, and to calibrate pressure transmitters, pressure switches, precision pressure gauges, and general pressure. Pressure instruments such as watches, sphygmomanometers, pressure sensors, etc.
Main Features
1. Temperature Compensation Range: 0~50℃
2. Humidity＜95%RH
3. Accuracy: 0.02%,0.05%
4. Module Type: Gauge pressure, differential pressure, absolute pressure
5. Interface: M20*1.5 external thread
6. Pressure Range: Refer to the table ( customized ranges are supported)
Pressure Range Select Table
| Range | Range | Range | Range | Range | Range |
| -100~0kPa | 0~100kPa | 0~2.5MPa | 0~40MPa | -1~1kPa | -100~100kPa |
| 0~2kPa | 0~160kPa | 0~4MPa | 0~60MPa | -2~2kPa | – |
| 0~5kPa | 0~250kPa | 0~6MPa | 0~80MPa | -5~5kPa | – |
| 0~10kPa | 0~400kPa | 0~10MPa | 0~100MPa | -10~10kPa | – |
| 0~20kPa | 0~600kPa | 0~16MPa | 0~160MPa | -16~16kPa | – |
| 0~25kPa | 0~1MPa | 0~20MPa | 0~250MPa | -25~25kPa | – |
| 0~40kPa | 0~1.6MPa | 0~25MPa | – | -40~40kPa | – |
| 0~60kPa | 0~2MPa | 0~30MPa | – | -60~60kPa | – |
