Product Description

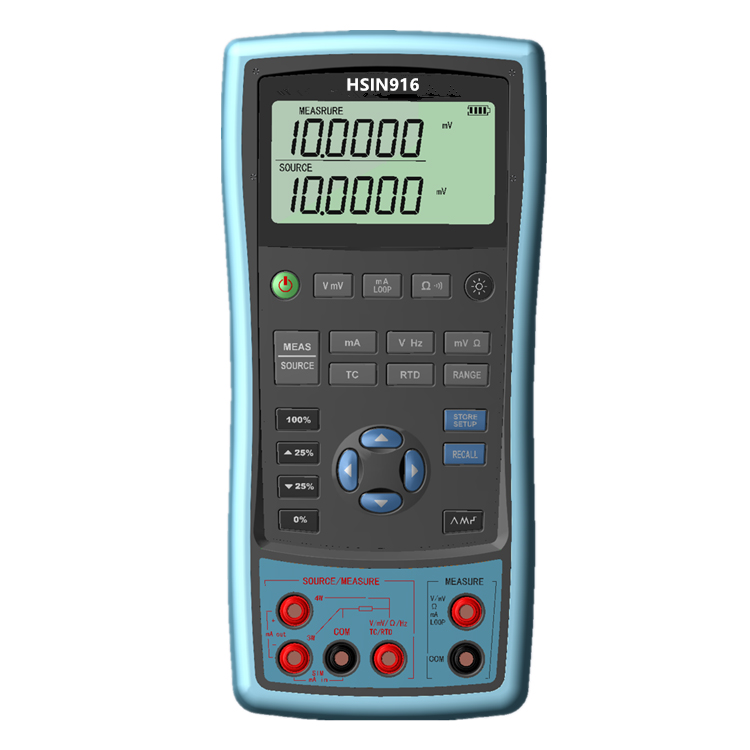

Overview: HSIN916 multi-function process calibrator is a high-precision handheld signal measurement/output instrument, which can simultaneously measure and output various industrial process signals such as voltage, current, resistance, frequency, thermocouple, thermal resistance, etc. Smart pressure modules can be used to calibrate pressure transmitters in the field. It can replace current signal source, voltage signal source, resistance box, electronic potentiometer, frequency meter and other measurement and calibration instruments. Mainly used in industrial field signal calibration and fault diagnosis; also suitable for signal measurement and calibration in chemical industry, military industry and various research institutes and laboratories.
Overview: HSIN916 multi-function process calibrator is a high-precision handheld signal measurement/output instrument, which can simultaneously measure and output various industrial process signals such as voltage, current, resistance, frequency, thermocouple, thermal resistance, etc. Smart pressure modules can be used to calibrate pressure transmitters in the field. It can replace current signal source, voltage signal source, resistance box, electronic potentiometer, frequency meter and other measurement and calibration instruments. Mainly used in industrial field signal calibration and fault diagnosis; also suitable for signal measurement and calibration in chemical industry, military industry and various research institutes and laboratories.
Features
1. Super Protection Function: Waterproof grade IP67, automatic protection of any signal terminal misconnected to 220V
2. Measure the temperature of thermocouple and RTD output
3. Analog thermocouple, RTD output
4. It can provide manual stepping, automatic stepping, 0~100% step and slope output function
5. With white LED backlight, with manual backlight adjustment and automatic power off function, suitable for on-site use
6. Unique automatic identification of three-wire and four-wire wiring methods
7. Accuracy: 0.05%
8. Battery cover for easy battery replacement
9. The thermocouple measurement and output provide automatic and manual cold junction temperature compensation
10. New types of thermocouples and thermal resistances can be added according to customer needs
11. Using Temperature: -10℃~55℃
12. Storage Temperature: -20℃~60℃
13. Relative Humidity: 0-90%RH, non-condensing
14. Weight: 350 grams
15. Dimensions: 185mm×93mm×47mm
16. Power Supply Mode: 6 7# batteries or AC adapter
17. Communication Method: RS232
1. Super Protection Function: Waterproof grade IP67, automatic protection of any signal terminal misconnected to 220V
2. Measure the temperature of thermocouple and RTD output
3. Analog thermocouple, RTD output
4. It can provide manual stepping, automatic stepping, 0~100% step and slope output function
5. With white LED backlight, with manual backlight adjustment and automatic power off function, suitable for on-site use
6. Unique automatic identification of three-wire and four-wire wiring methods
7. Accuracy: 0.05%
8. Battery cover for easy battery replacement
9. The thermocouple measurement and output provide automatic and manual cold junction temperature compensation
10. New types of thermocouples and thermal resistances can be added according to customer needs
11. Using Temperature: -10℃~55℃
12. Storage Temperature: -20℃~60℃
13. Relative Humidity: 0-90%RH, non-condensing
14. Weight: 350 grams
15. Dimensions: 185mm×93mm×47mm
16. Power Supply Mode: 6 7# batteries or AC adapter
17. Communication Method: RS232
Trading Information
Minimum Order Quantity: MOQ=1 Unit
Price: N/M
Payment Term: TT, Paypal, Western union
Supply Ability: 200 unit per week
Delivery Deadline: 5~7 days
Conventional Packing: Carton
Minimum Order Quantity: MOQ=1 Unit
Price: N/M
Payment Term: TT, Paypal, Western union
Supply Ability: 200 unit per week
Delivery Deadline: 5~7 days
Conventional Packing: Carton
