Product Description

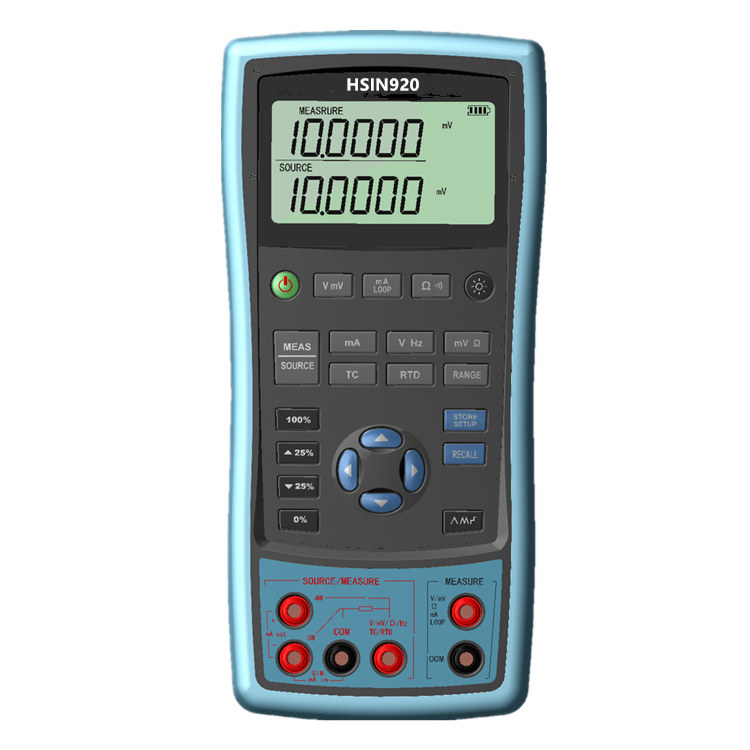

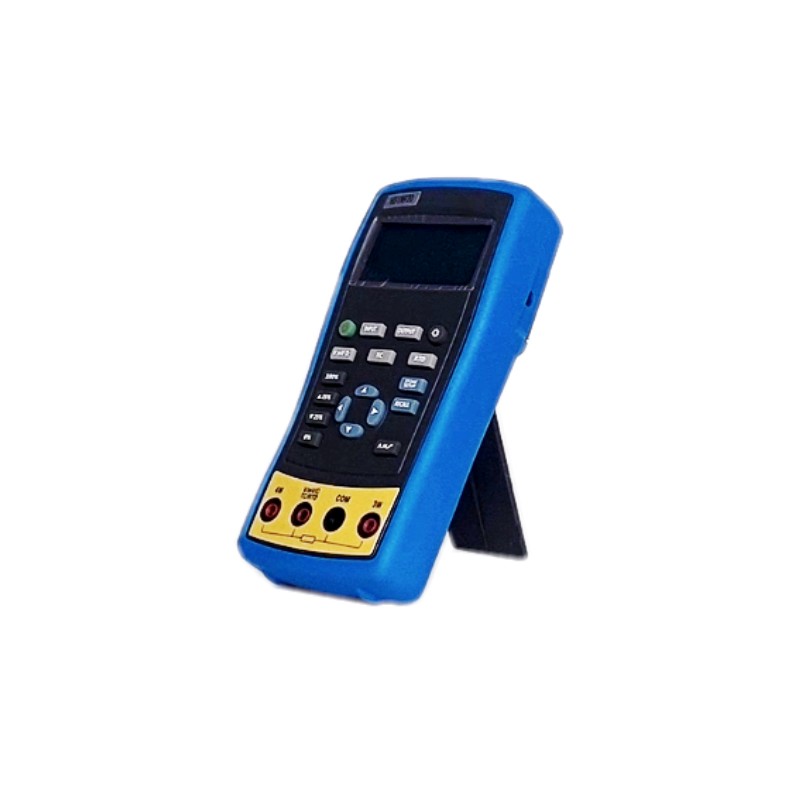

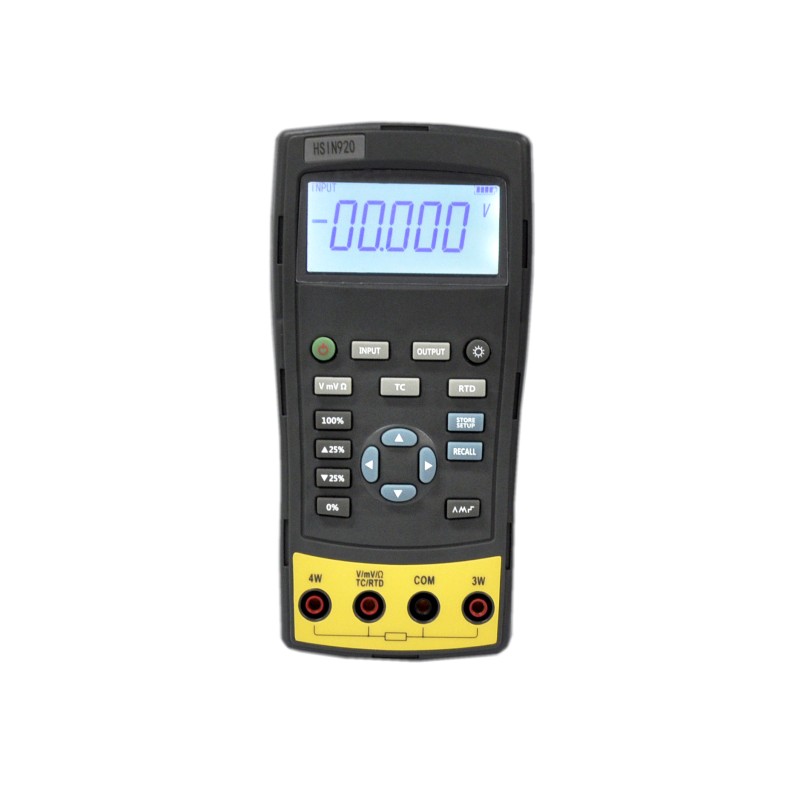

Overview: HSIN920 temperature process calibrator is a high-precision, high-resolution, high-reliability handheld calibrator that integrates measurement and simulation of thermal resistance, thermocouple, output and measurement of voltage, millivolt, resistance and other electrical parameters. . High-brightness large-screen display with backlight, simple operation, sturdy structure, small and light, compact and economical, can be used in instrument workshops, measurement rooms, calibration laboratories, and is an ideal calibration instrument for process control instruments.
Overview: HSIN920 temperature process calibrator is a high-precision, high-resolution, high-reliability handheld calibrator that integrates measurement and simulation of thermal resistance, thermocouple, output and measurement of voltage, millivolt, resistance and other electrical parameters. . High-brightness large-screen display with backlight, simple operation, sturdy structure, small and light, compact and economical, can be used in instrument workshops, measurement rooms, calibration laboratories, and is an ideal calibration instrument for process control instruments.
Features
1. Super Protection Function: Waterproof grade IP67, automatic protection of any signal terminal misconnected to 220V
2. Measure the temperature of thermocouple and RTD output
3. Analog thermocouple, RTD output
4. It can provide manual stepping, automatic stepping, 0~100% step and slope output function
5. With white LED backlight, with manual backlight adjustment and automatic power off function, suitable for on-site use
6. Unique automatic identification of three-wire and four-wire wiring methods
7. Accuracy: 0.05%

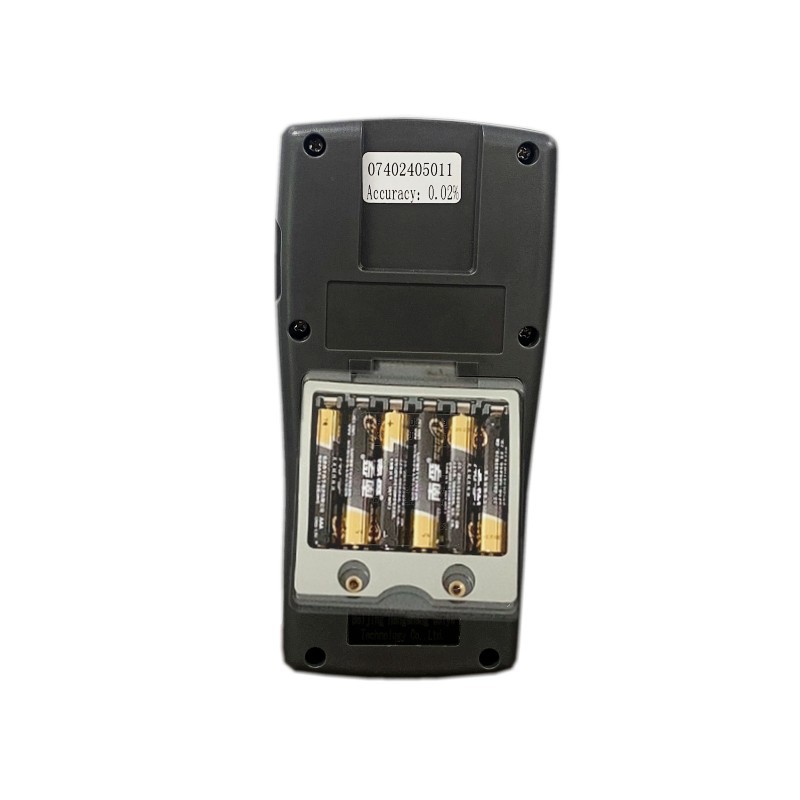

8. Battery cover for easy battery replacement
9. The thermocouple measurement and output provide automatic and manual cold junction temperature compensation
10. New types of thermocouples and thermal resistances can be added according to customer needs
11. Using Temperature: -10℃~55℃
12. Storage Temperature: -20℃~60℃
13. Relative Humidity: 0-90%RH, non-condensing
14. Weight: 350 grams
15. Dimensions: 185mm×93mm×47mm
16. Power Supply Mode: 6 7# batteries or AC adapter
17. Communication Method: RS232
1. Super Protection Function: Waterproof grade IP67, automatic protection of any signal terminal misconnected to 220V
2. Measure the temperature of thermocouple and RTD output
3. Analog thermocouple, RTD output
4. It can provide manual stepping, automatic stepping, 0~100% step and slope output function
5. With white LED backlight, with manual backlight adjustment and automatic power off function, suitable for on-site use
6. Unique automatic identification of three-wire and four-wire wiring methods
7. Accuracy: 0.05%
8. Battery cover for easy battery replacement
9. The thermocouple measurement and output provide automatic and manual cold junction temperature compensation
10. New types of thermocouples and thermal resistances can be added according to customer needs
11. Using Temperature: -10℃~55℃
12. Storage Temperature: -20℃~60℃
13. Relative Humidity: 0-90%RH, non-condensing
14. Weight: 350 grams
15. Dimensions: 185mm×93mm×47mm
16. Power Supply Mode: 6 7# batteries or AC adapter
17. Communication Method: RS232
Trading Information
Minimum Order Quantity: MOQ=1 Unit
Price: N/M
Payment Term: TT, Paypal, Western union
Supply Ability: 200 unit per week
Delivery Deadline: 5~7 days

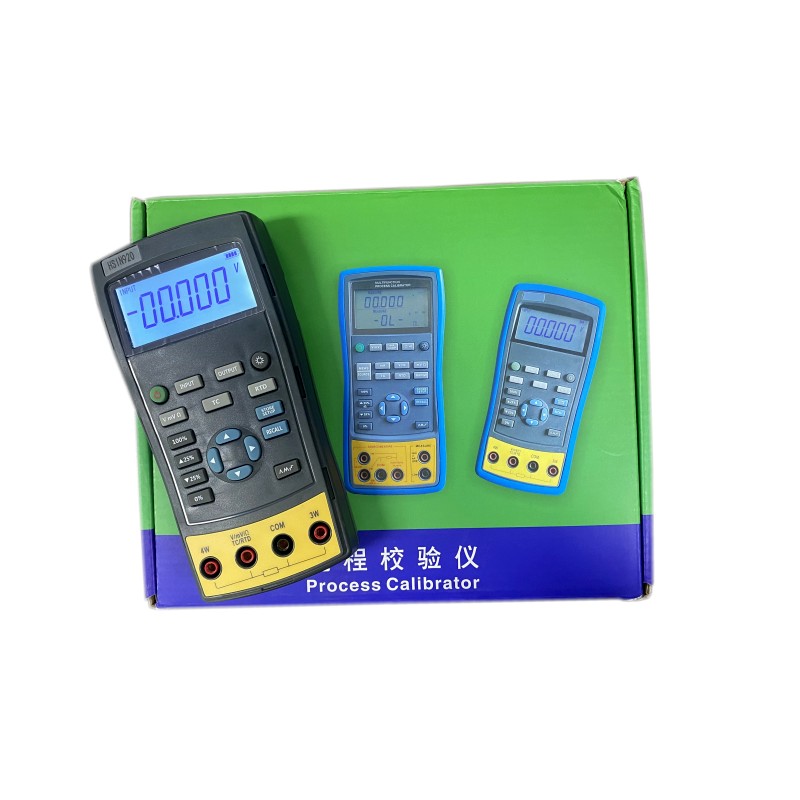

Conventional Packing: Carton
Minimum Order Quantity: MOQ=1 Unit
Price: N/M
Payment Term: TT, Paypal, Western union
Supply Ability: 200 unit per week
Delivery Deadline: 5~7 days
Conventional Packing: Carton
