Overview

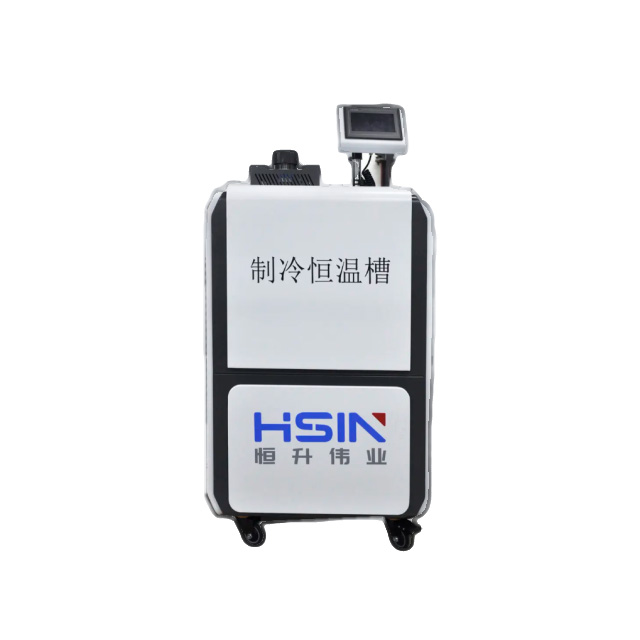

HSIN9003 cooling thermostatic liquid water bath is developed according to the technical requirements of the verification regulation of standard platinum resistance thermometer, It is controlled by touch screen and easy to operateIt has double tank double circulation,. Through intelligent PID regulation, the temperature field is uniform, the noise is small, the temperature control is stable and the performance is reliable. It can meet the verification / calibration of various low-temperature thermocouples, industrial thermal resistors, pressure thermometers, bimetallic thermometers, glass liquid thermometers and other temperature sensors.
Feature
- The working area adopts double tank and double circulation to improve the uniformity and stability of temperature field;
- It adopts imported fully enclosed cascade refrigerator, with low noise, good reliability and long service life;
- The instrument adopts single chip microcomputer fuzzy control;
- The current temperature value and set value are displayed at the same time, and the display resolution is 0.001 ℃.
Technical Parameter
| Model | HSIN9003 Cooling Thermostatic Water Bath |
|
Temperature range |
(-10~100)℃/(-20~100)℃/(-40~100)℃/(-60~100)℃/(-80℃~100)℃/(-200~0)℃
|
| Temperature uniformity | Horizontal temperature field≤±0.01℃
Vertical temperature field ≤± 0.02 ℃ |
| Temperature fluctuation | ≤±0.01℃/30min |
| Workspace size | φ130*480(mm) |
| Overall Dimension | 690*630*1500(mm) |
| Tank volume | 18L |
|
Working medium |
Pure water, anhydrous ethanol (according to the working temperature range to determine the working medium) |
| Total power | 2.1KW |
| Refrigerant | 404a |
| Power Supply | 220V/50Hz |
| Net weight | 100kg |
| Appearance | Plastic spraying |
