Overview

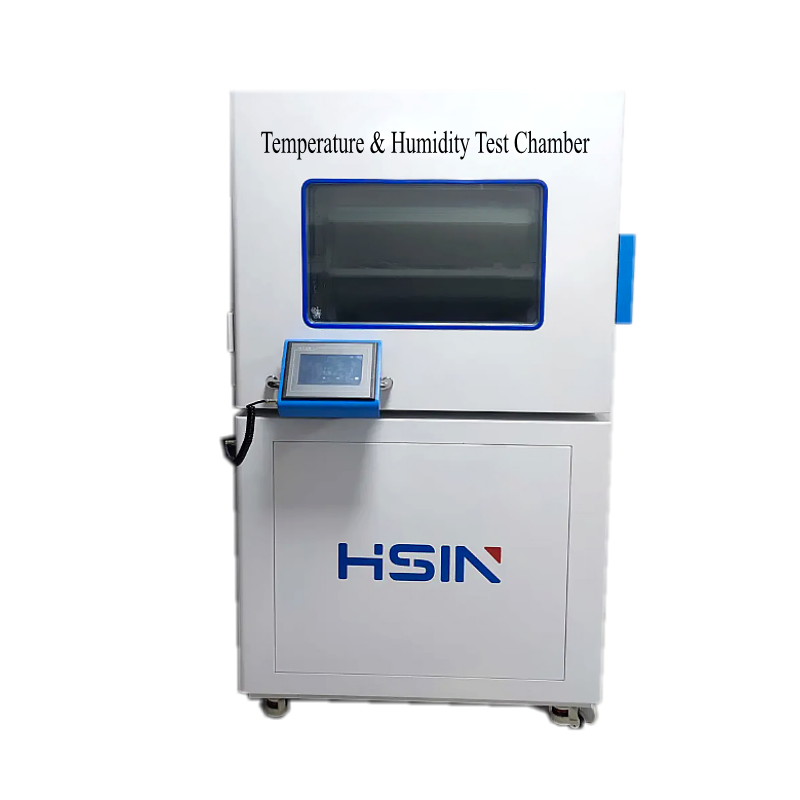

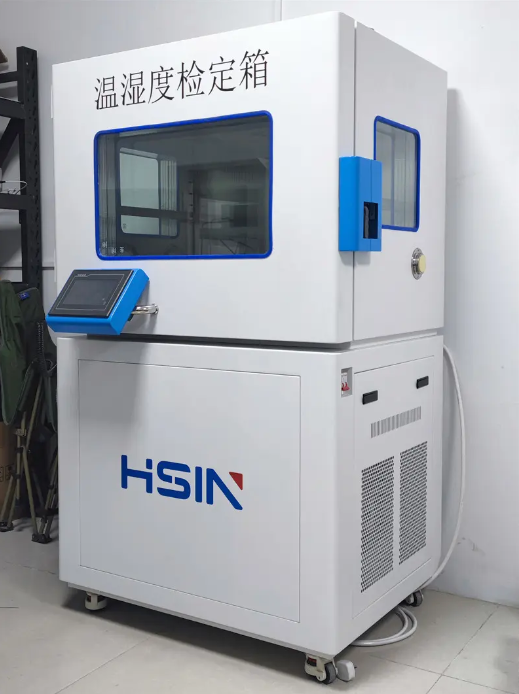

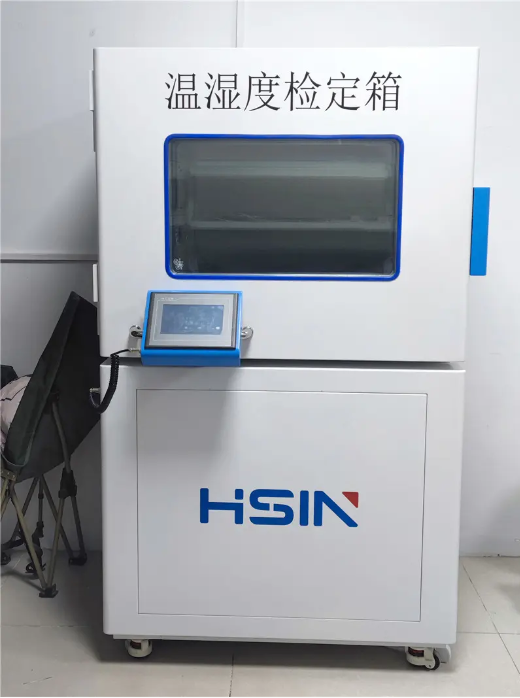

HSIN9500 temperature & humidity calibration chamber is a specialized constant temperature and humidity chamber developed by our company for calibrating hygrometers. It features a 360-degree unobstructed observation window, ensuring high stability and minimal fluctuation. This equipment is specifically designed for the calibration of hair hygrometers, dry and wet bulb thermometers, digital temperature and humidity meters, and other types of temperature and humidity sensors. It is suitable for use in metrology departments, meteorological agencies, electronics, power, military sectors, educational institutions, and research institutes.
Feature
- The chamber is constructed from high-quality 304 stainless steel with an outer layer coated for corrosion resistance and aesthetic appeal. Adjustable locking casters are provided to balance and protect the compressor.
- Double high-temperature anti-aging silicone sealing strips ensure that the experimental area remains unaffected by external conditions. The large observation window includes an anti-frost device and controlled lighting.
- The control sensor utilizes a high-precision temperature and humidity sensor paired with an imported intelligent power regulator known as the “temperature and humidity regulation expert.” This system offers high stability and reliability, with PID parameter self-tuning functionality to maintain system balance, rapid response, and stability.
- An advanced human-machine interface with touch control screen provides a user-friendly control panel. The temperature control logic employs a programmable controller, enabling easy operation, flexibility, and robust performance. Continuous testing for several days and mobile phone remote control are supported.
Technical Parameter
Name | Technical Parameter | |
Product Model | HSIN9500 | |
Power Supply | AC 220V 50Hz | |
Power Consumption | ≤4.5kW | |
Temperature & Humidity Resolution | 0.01℃,0.01%RH | |
Function | Temperature Range | 5~50℃ |
Humidity Range | 10~95%RH | |
Temperature Fluctuation | ≤±0.1℃(15℃,20℃,30℃) | |
Temperature Fluctuation | ≤0.3℃(at 15℃,20℃,30℃) | |
Humidity Fluctuation | ≤±0.8%RH | |
Humidity Uniformity | ≤1%RH | |
Control Mode | Touchscreen Human-Machine Interface Automatic Control | |
Chamber Interior Dimensions(mm) | (800*500*500)mm | |
Test Hole Diameter(2) | Φ100mm | |
Overall Dimensions | (1000*750*1700)mm | |
Weight | 320kg | |
Temperature and Humidity Control Sensor | Switzerland ROTRONIC Hygroclips Temperature and Humidity Probe;
Measuring Range: 0~100%RH/-40~85℃; Accuracy: ±1.5%,±0.3℃ |
|
Regulations | JJF1076-2020 <Digital Hygrometer Calibration Specification>
JJG 205-2005 <Mechanical Hygrometer Calibration Regulations> JJF1564-2016 <Temperature and Humidity Standard Chamber Calibration Specification> |
