Overview

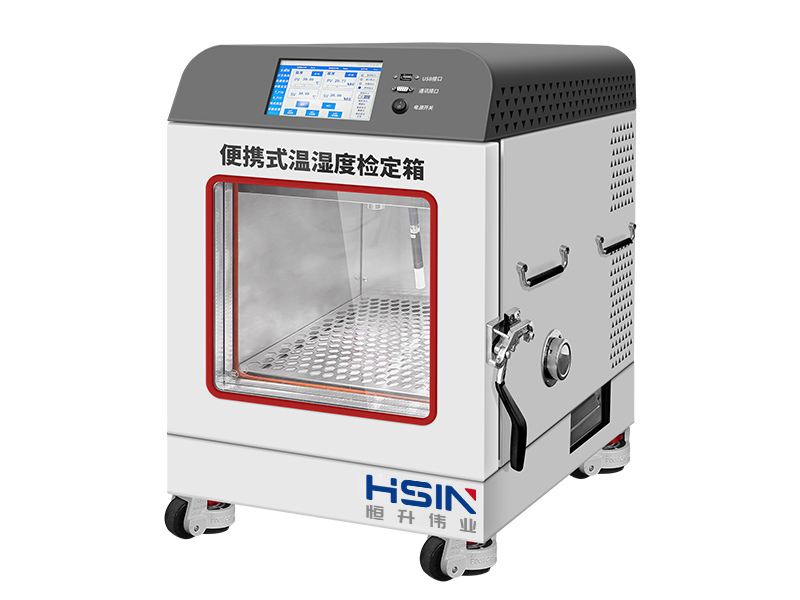

The HSIN9501-M portable temperature and humidity test chamber is a specialized device developed by our company for the calibration of temperature and humidity meters. Featuring an ultra-compact design, it is particularly suitable for small-scale testing in laboratories, universities, and research institutions. This calibration chamber is applicable for research and development purposes in various academic and professional laboratory settings. It is equipped with a large observation window and offers excellent stability and minimal fluctuation, making it ideal for verifying the accuracy of hair hygrometers, dry and wet bulb thermometers, digital temperature and humidity meters, and other types of humidity and temperature sensors. It is widely used in metrology departments at all levels, meteorological institutions, electronics, power, military industries, and other production departments, as well as in educational and research environments where space and volume constraints are critical.
Feature
- The portable temperature and humidity testchamber features a compact and lightweight design, ensuring ease of portability and suitability for on-site testing or environments requiring frequent relocation.
2. The internal chamber is constructed from 304 stainless steel, with an external plastic-coated finish that enhances both aesthetics and corrosion resistance.
3. The device incorporates dual-layer, high-temperature-resistant, anti-aging silicone rubber sealing strips to effectively isolate the internal environment from external influences.
4. A large observation window and adjustable lighting fixtures are installed for clear visual monitoring of the testing process.
5. High-precision temperature and humidity sensors are used as control sensors, paired with imported intelligent power regulators known as “experts in temperature and humidity regulation.” These components ensure high stability and reliability, and the system includes a PID parameter self-tuning function to maintain system balance, speed, and stability.
6. The control system features a user-friendly touch-screen human-machine interface, with programmable logic control for temperature regulation.

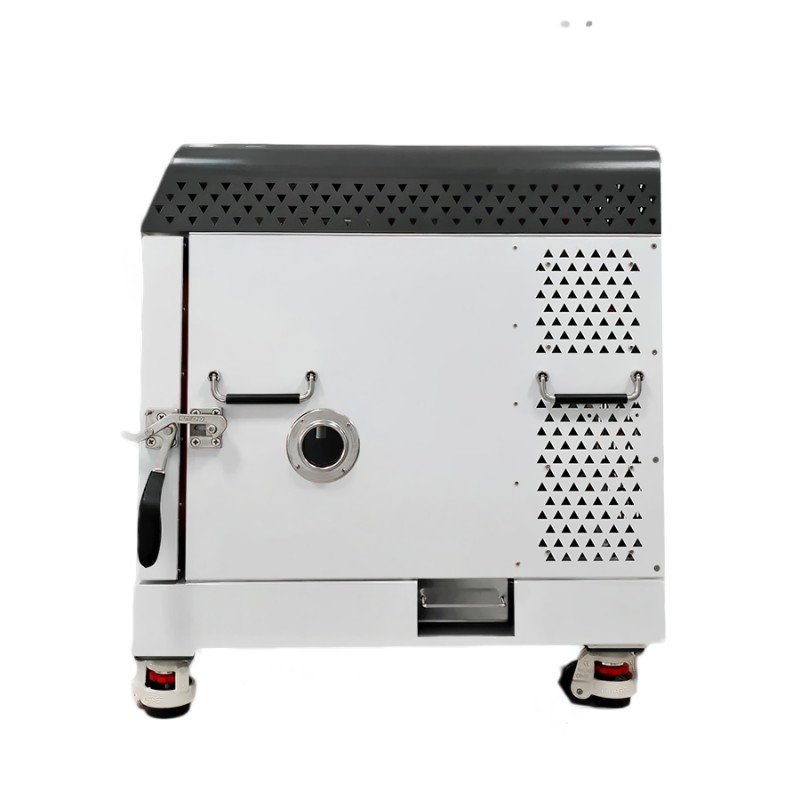

7. The unit is equipped with universal casters to facilitate mobility and enhance operational convenience.
8. A 7-inch touch screen is integrated into the system, offering intuitive and user-friendly operation.
9. The system includes a real-time temperature fluctuation curve display for continuous monitoring of temperature variations.
10. (Optional) Program control functionality allows for the configuration of up to 10 different test programs, enabling one-touch operation for improved efficiency and adaptability to various testing requirements.
11. The screen supports multi-point independent temperature correction, including up to 40-point temperature fitting correction. This ensures that the corrected measurement error remains below 0.1℃ (1.0%RH), covering a wide range of correction applications with minimal deviation.
Technical Parameter
Name | Technical Parameter | |
Product Model | HSIN9501-M | |
Power Supply | AC 220V 50Hz | |
Power Consumption | Maximum Power Consumption: <2500W
Rated Power: 1500W |
|
Temperature & Humidity Resolution | 0.01℃,0.01%RH | |
Function | Temperature Range | -10~65℃ |
Humidity Range | 5~95%RH | |
Temperature Fluctuation | ≤±0.2℃ (15℃,20℃,30℃) | |
Temperature Fluctuation | ≤0.3℃ (at 15℃,20℃,30℃) | |
Humidity Fluctuation | ≤±0.8%RH (20℃) | |
Humidity Uniformity | ≤1%RH(20℃) | |
Control Mode | 7inch Touchscreen Human-Machine Interface Fully Automatic Control | |
Chamber Interior Dimensions(mm) | (310*360*245)mm | |
Test Hole Diameter(2) | Φ50mm | |
Overall Dimensions | (460*660*720)mm | |
Weight | 75kg | |
Regulations | JJF1564-2016 <Temperature and Humidity Standard Chamber Calibration Specification> | |
Name | Technical Parameter | |
Product Model | HSIN9501-M | |
Power Supply | AC 220V 50Hz | |
Power Consumption | Maximum Power Consumption: <2500W
Rated Power: 1500W |
|
Temperature & Humidity Resolution | 0.01℃,0.01%RH | |
Function | Temperature Range | 5~50℃ |
Humidity Range | 10~90%RH | |
Temperature Fluctuation | ≤±0.2℃ (15℃,20℃,30℃) | |
Temperature Fluctuation | ≤0.3℃ (at 15℃,20℃,30℃) | |
Humidity Fluctuation | ≤±0.8%RH (20℃) | |
Humidity Uniformity | ≤1%RH(20℃) | |
Control Mode | 7inch Touchscreen Human-Machine Interface Fully Automatic Control | |
Chamber Interior Dimensions(mm) | (310*360*245)mm | |
Test Hole Diameter(2) | Φ50mm | |
Overall Dimensions | (460*660*720)mm | |
Weight | 75kg | |
Regulations | JJF1564-2016 <Temperature and Humidity Standard Chamber Calibration Specification> |
